MODEL9500BW WOOD RED Music Mixer
4CHANNEL TABLE TOP MIXER
MODEL9500BW RED LE(broadcast mixer) Music Mixer

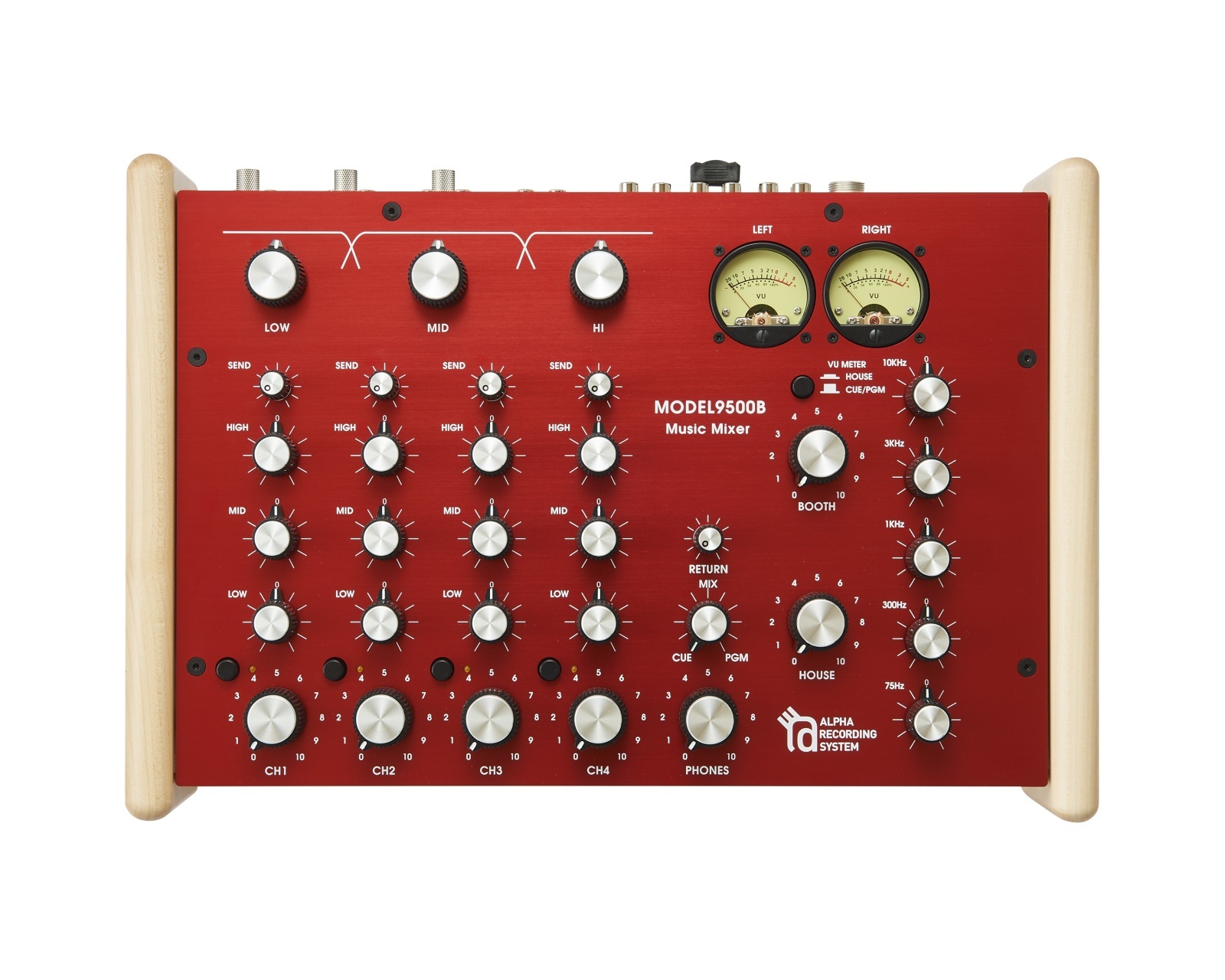

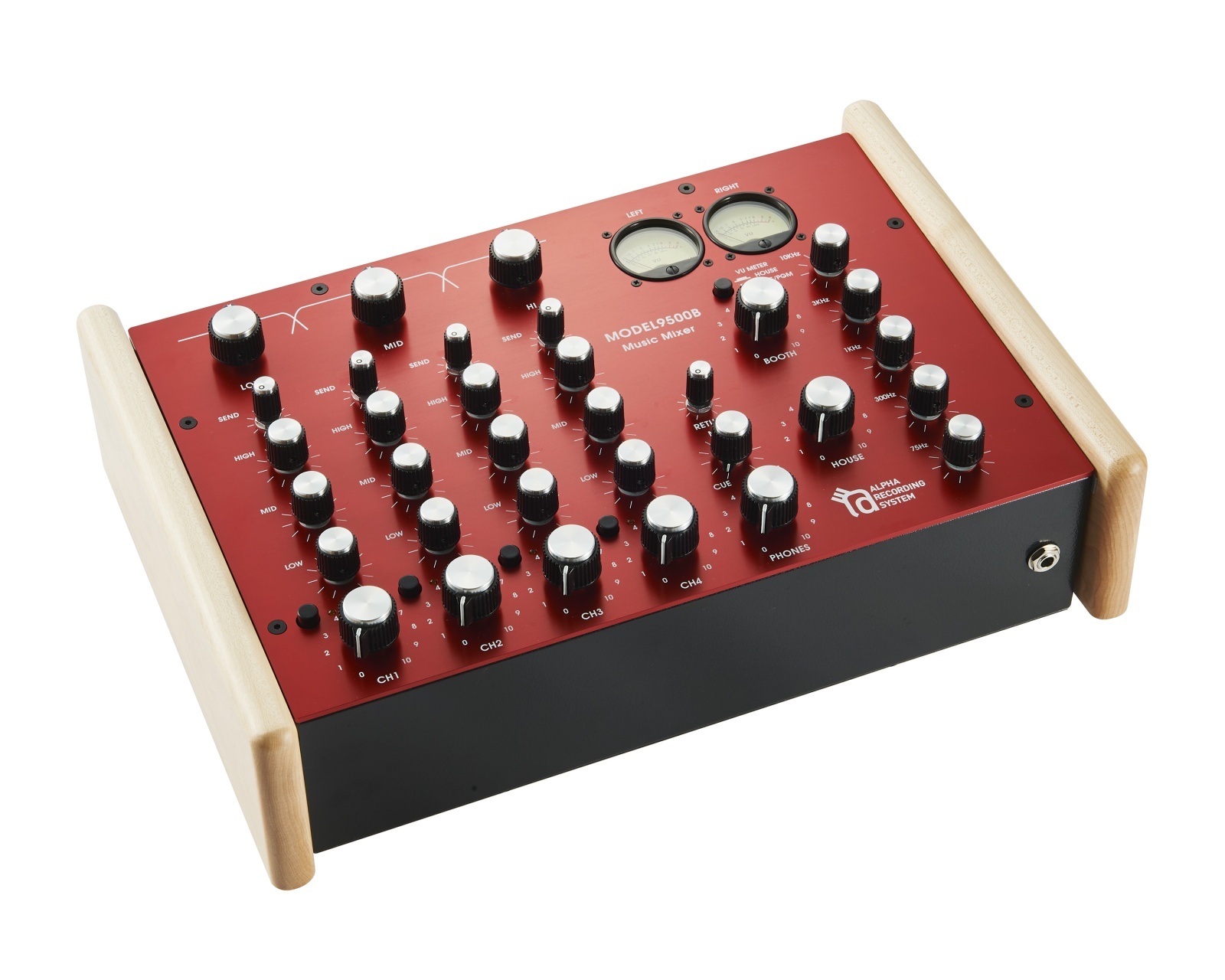

ARS Anniversary limited edition red face model
ARS MODEL 9500B DJ Mixer is a Japanese made,
4ch. rotary mixer with world's first 3band hybrid isoeq
Hi-eq Mid-eq Low -Iso on each channel.
This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator and 5Band Equalizer on the master.

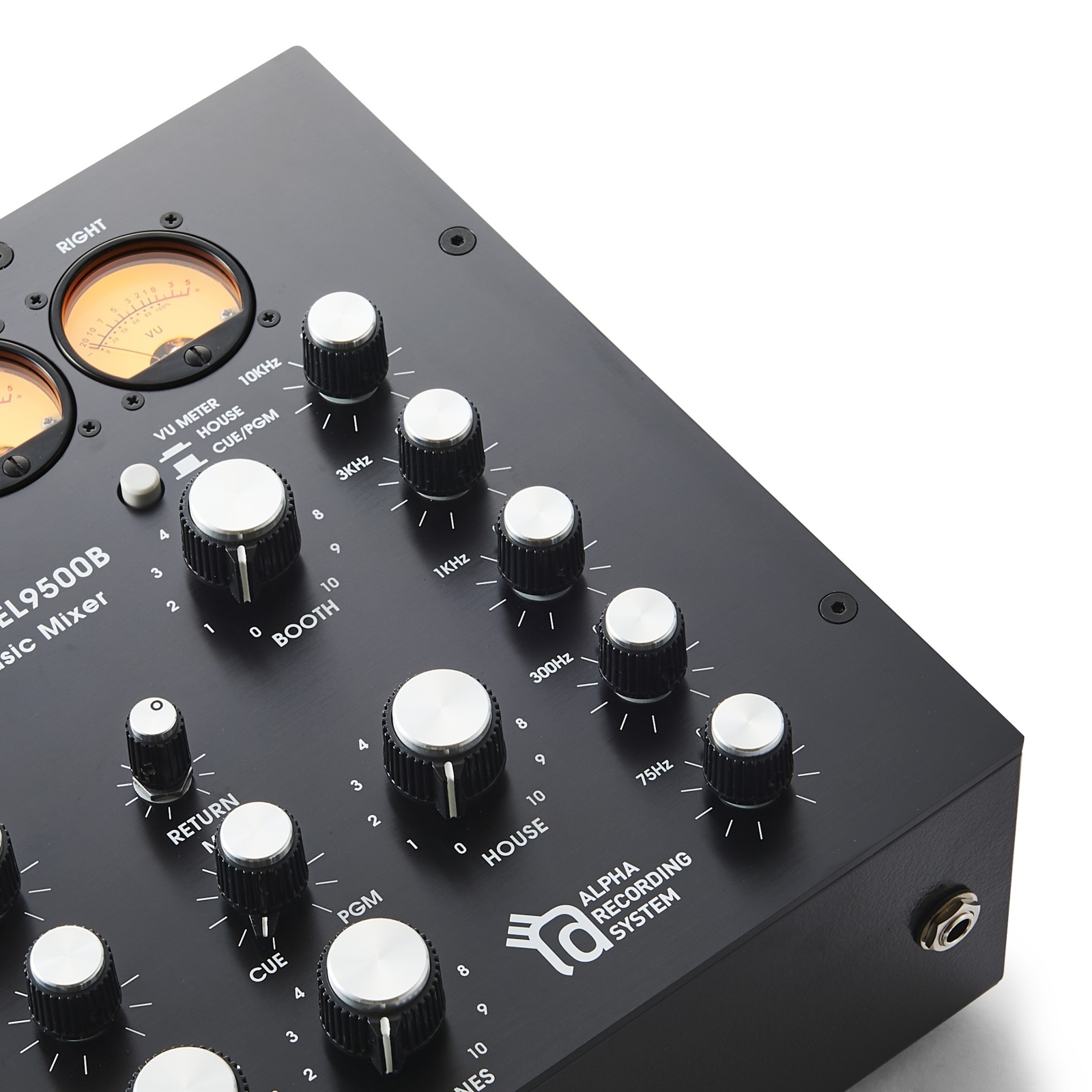

5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5Band
Potentiometer and Switch are All ALPS .
A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship.
Highly recommended.
It is designed with purist ideals with only essential features.
ARS 9500 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel
and 3band Iso and 5band EQ on the master.
The Master Isolators can be boost of cut from +18db ~ -∞.
The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -∞.
Each channel has Post Fader Send. also Return and Effect Loop.
* Due to the Model-9500 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.
* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.
Wood is a natural material, so there may be unevenness in the wood grain. Thank you for your understanding.
Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 30w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)406 x (H)250 x (D)100 mm
model9500BW Unit weight:5400g
ACBOX:1100g
Front Panel Color: Red
Spec Seat: Manufacturer site
