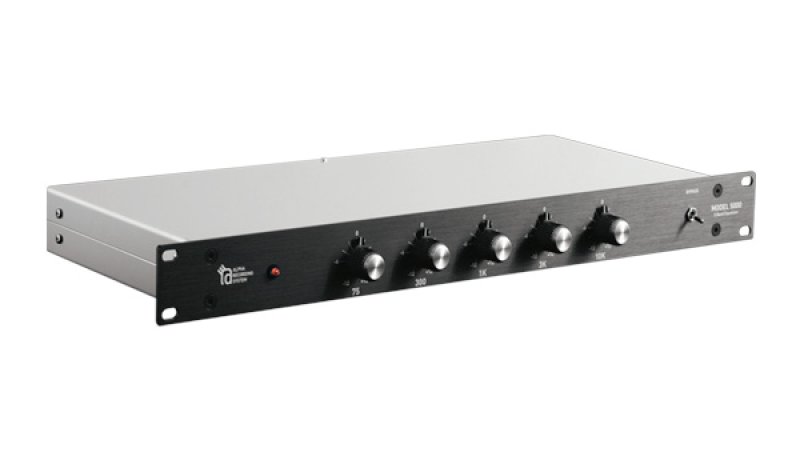

ARS MODEL 5000 Black Face [ARS MODEL 5000BL]

MODEL 5000 5 BAND EQUALIZER

The MODEL-5000 5 Band Equalizer is designed toadjust to all genres of music, and various soundsources such as vinyl, CD and PC.


Source sounds remains lively, while 5 Band Equalizer allowing effective and precise equalization that is not possible with isolators.
Wide Q filter gives instantaneous adjustment.
ARS MODEL-5000 will become your essential item on the site.

* 5 bandwidth of frequencies, HI / HI MID / MID / MID LOW / LOW, are finely level-controlled.
* For the input sources, either RCA unbalanced jacks or XLR balanced jacks (2HOT) can be connected.
* For the output sources, both RCA unbalanced jacks and XLR balanced jacks can be connected simultaneously since both jacks has independent output circuits.
* Knobs have brims on the center point to easily identified the center with a little light in the clubs.
* 50 mm width intervals between knobs give smooth operation to improve DJ performance.
* No power switch avoiding accidentally turning power off while playing.
* Minimizing the power noise by designing the main circuit board and the power circuit board independently and setting them apart.

[SPEC]
Frequency Response: +-1dB 20Hz-20Khz (With no EQ)
Input: RCA Unbalanced Impedance 20K Ohm/ XLR Balanced Impedance 40K Ohm
Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Maximum Output Level: +20 dB
Equalizer Control: 75Hz, 300Hz, 1Khz, 3Khz, 10Khz, 5 Bands
Adjustable Range: ±12dB
EQ In/Out Switch: Selector switch on the right side of the front panel.
Power Requirement: US-115V/EU-230V(Selectable)
Power Consumption: 10w
Dimensions: Front Panel 1U (W)482 x (H)44 x (D)195 mm
Front Panel Color: Black
Spec Seat: Manufacturer site
ARS MODEL 5000 Black Face [ARS MODEL 5000BL]

Selling Price: 171,000JPY

Prices vary according to options.

Weight: 7kg

Front Face Color:
Option
[SPEC]
Dimensions: Front Panel 1U (W)482 x (H)44 x (D)3 mm
Front panel color: Black
Option 1U SPACE ALPHA FACE PLATE:
