Reservations will be accepted. ARS MODEL 1100Wood MUSIC MIXER limited edition [ARS MODEL 1100W]
2CHANNEL TABLE TOP MIXER
MODEL1100 MUSIC MIXER PRO PROFESSIONAL
We accept reservations. Delivery time is 1-2 weeks

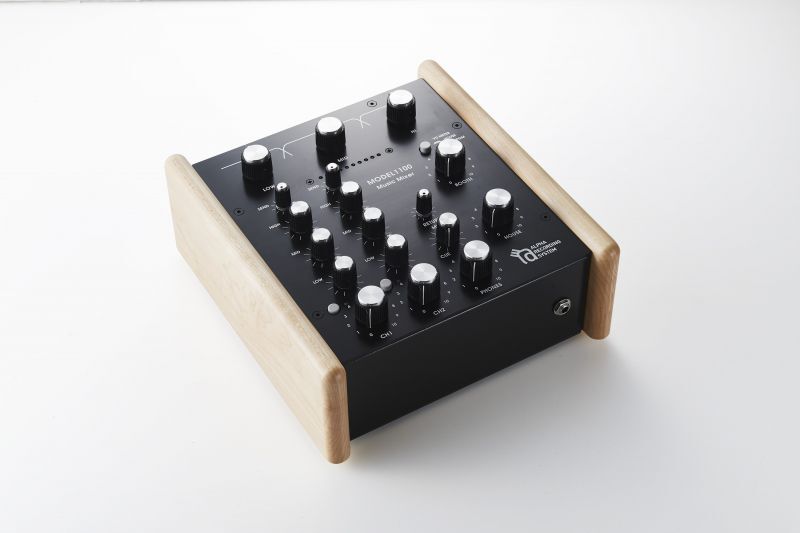

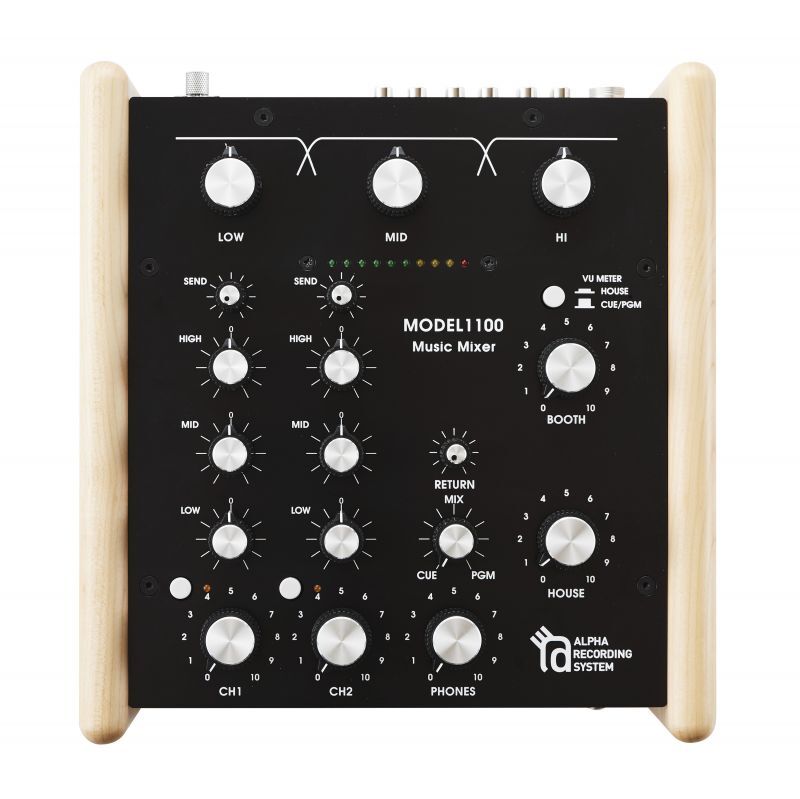

ARS MODEL 1100 DJ Mixer is a Japanese made,
4ch. rotary mixer with world's first 3band hybrid isoeq
Hi-eq Mid-eq Low -Iso on each channel.
This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master.
Potentiometer and Switch are All ALPS .
A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship.
It is designed with purist ideals with only essential features.
ARS 1100 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel
and 3band Iso on the master.
The Master Isolators can be boost of cut from +18db ~ -∞.
The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -∞.
Each channel has Post Fader Send. also Return and Effect Loop.
* Due to the Model-1100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.
* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.
Wood is a natural material, so there may be unevenness in the wood grain. Thank you for your understanding.
Frequency Response: +-1dB 20Hz-20Khz
Input: 2 x Phono: 47K Ohm /2 x Line: 20K Ohm
House Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Retrun: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-2Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 – 300 Hz / 300 – 3000 Hz / 3000 – 20000Hz boost of cut from +18db ~ -∞.
Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 20w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)260 x (H)250 x (D)100 mm
Front Panel Color: Black
Spec Seat: Manufacturer site
Selling Price: 327,000JPY
Prices vary according to options.
Since we accept the payment through PayPal, the conversion rates differ depends on PayPal's conversion rates.
